Five more tornadoes and three downbursts in SK on June 23
NTP investigation has determined that five weak tornadoes occurred in south-central Saskatchewan on the evening of June 23, in addition to the two tornadoes that were already confirmed that day. The new tornadoes occurred at Vonda (2), Buffer Lake and Annaheim (2). Confirmations in Vonda and Buffer Lake were based on eyewitness and visual evidence, and with no damage reported were assigned EF0-Default ratings. Thanks to Braydon Morisseau for the information provided related to the tornadoes he captured.
An NTP storm survey at Annaheim following reported damage was able to provide evidence for two tornadoes there, one rated EF1 and the other EF0.
The NTP storm survey team was also able to locate tree damage associated with the previously confirmed Fulda tornado. This allowed the EF-scale rating to be upgraded from EF0-Default to EF0, and track information to be recorded.
A tree damage report was also received by NTP that allowed us to rate the Borden tornado as EF0, though there is not enough information to document a track.
In addition, the NTP storm survey team was able to gather evidence for three downbursts from this day, at Gravelbourg, Estevan and Carrot River.
Full details are provided in the event summaries below, along with maps and photos. The events can also be plotted on a map using the NTP Dashboard here.
====
Event Name: Vonda (1) SK
Date: June 23, 2024
Start Time: 6:28 PM CST (0028 UTC)
Final Classification: Tornado (Over Land)
Final EF-Scale Rating: EF0-default
Estimated Tornado Location: 52.32N, 106.21W
Description: Witness reported a brief tornado west of Vonda and captured video of the associated ground circulation. No injuries were reported. As no damage was found and satellite imagery review revealed no visible damage, the EF-scale assessment is default EF0. Information available insufficient to accurately estimate track length, max. path width and tornado motion. Start time is based on witness report. A second tornado was reported north of Vonda shortly after this event.
Event Name: Vonda (2) SK
Date: June 23, 2024
Start Time: 6:31 PM CST (0031 UTC)
Final Classification: Tornado (Over Land)
Final EF-Scale Rating: EF0-default
Estimated Tornado Location: 52.35N, 106.12W
Description: Witness reported a tornado west of Vonda and captured video of the associated vortex-funnel cloud aloft. No injuries were reported. As no damage was found and satellite imagery review revealed no visible damage, the EF-scale assessment is default EF0. Information available insufficient to accurately estimate track length, max. path width and tornado motion. Start time is based on witness report. A brief tornado was reported west of Vonda prior to this event.
Event Name: Buffer Lake, SK
Date: June 23, 2024
Estimated Start Time: 6:47 PM CST (0047 UTC)
Final Classification: Tornado (Over Water)
Final EF-Scale Rating: EF0-Default
Estimated Tornado Location: 52.37N, 106.04W
Description: Witness captured video of a brief waterspout over Buffer Lake (north of Vonda). No damage reported and none discovered along the shoreline during satellite imagery review.
Event Name: Annaheim (1), SK
Date: June 23, 2024
Start Time: 8:05 PM CST (0205 UTC)
Final Classification: Tornado (Over Land)
Final EF-Scale Rating: EF1
EF-Scale Damage Indicator / Degree of Damage: WHB/DOD-3
Start of damage track: 52.3552N, 104.8134W
End of damage track: 52.3471N, 104.7837W
Location of worst damage: 52.3549N, 104.8122W
Description: Damage to a property in the Annaheim area was reported after a storm passed through. No injuries were reported. An NTP survey team visited the area on June 25-26, 2024 and discovered damage at several locations, including a building with collapsed overhead doors and tree damage north of Annaheim. Damage assessed as EF1 tornado, with an estimated max. wind speed of 140 km/h, track length of 2.19 km and max. path width of 240 m. Tornado motion was from the WNW (approx. 290 degrees). Start time is radar estimated. Satellite imagery review did not reveal any visible damage.
Event Name: Annaheim (2), SK
Date: June 23, 2024
Start Time: 8:10 PM CST (0210 UTC)
Final Classification: Tornado (Over Land)
Final EF-Scale Rating: EF0
EF-Scale Damage Indicator / Degree of Damage: C-T/DOD-3
Start of damage track: 52.3295N, 104.6930W
End of damage track: 52.3186N, 104.6115W
Location of worst damage: 52.3235N, 104.6467W
Description: Tree and shed damage at a property east of Annaheim was reported after a storm passed through. No injuries were reported. An NTP survey team visited the area on June 25-26, 2024 documenting the reported damage and additional tree damage in the area. Damage assessed as EF0 tornado, with an estimated max. wind speed of 115 km/h, track length of 5.69 km and max. path width of 300 m. Tornado motion was from the W (approx. 280 degrees). Start time is radar estimated. Satellite imagery review did not reveal any visible damage.
Event Name: Fulda, SK (Update)
Date: June 23, 2024
Start Time: 7:38 PM CST (0138 UTC)
Final Classification: Tornado (Over Land)
Final EF-Scale Rating: EF0
EF-Scale Damage Indicator / Degree of Damage: C-T/DOD-3
Start of damage track: 52.3475N, 105.2903W
End of damage track: 52.3418N, 105.2614W
Location of worst damage: 52.3419N, 105.2620W
Description: Witness captured a photo of a tornado near Fulda (northwest of Humbolt). No damage and no injuries were reported. An NTP survey team visited the area on June 25, 2024 and found tree damage at several farm properties. Damage assessed as EF0 tornado, with an estimated max. wind speed of 115 km/h, track length of 2.03 km and max. path width of 150 m. Tornado motion was from the WNW (approx. 290 degrees). Start time is based on witness report. Satellite imagery review did not reveal any visible damage.
Event Name: Borden, SK
Date: June 23, 2024
Start Time: 5:10 PM CST (2310 UTC)
Final Classification: Tornado (Over Land)
Final EF-Scale Rating: EF0
EF-Scale Damage Indicator / Degree of Damage: C-T/DOD-3
Damage area: 52.5691N, 107.0848W
Description: Witness captured a photo of a tornado north of Borden. No damage and no injuries were reported. An NTP survey team visited the area on June 25, 2024, but found no damage (though rain in the area prevented drone flights). A report of tree damage in the vicinity of the tornado was later shared. Damage assessed as EF0 tornado, with an estimated max. wind speed of 115 km/h. Information available insufficient to accurately estimate track length, max. path width and tornado motion. Start time is based on witness report. Satellite imagery review did not reveal any visible damage.
Event Name: Gravelbourg, SK
Date: June 23, 2024
Time: 6:30 PM CST (0030 UTC)
Final Classification: Downburst (microburst)
Final EF-Scale Rating: EF0
EF-Scale Damage Indicator / Degree of Damage: FR12/DOD-2
Location of worst damage: 49.8730N, 106.5444W
Description: Structural damage was reported in Gravelbourg after a storm passed through the area. No injuries were reported. An NTP ground and drone survey was completed on June 24, 2024, documenting the reported damage and weak tree damage. Damage assessed as EF0 downburst (microburst), with an estimated max. wind speed of 100 km/h. Event time is radar estimated. Satellite imagery review did not reveal any visible damage.
Event Name: Estevan, SK
Date: June 23, 2024
Time: 11:30 PM CST (0530 UTC)
Final Classification: Downburst
Final EF-Scale Rating: EF0
EF-Scale Damage Indicator / Degree of Damage: SBO/DOD-5
Location of worst damage: 49.1316N, 102.9459W
Description: Structural damage was reported in Estevan after a storm passed through the area. No injuries were reported. An NTP ground and drone survey was completed on June 25, 2024, and while the reported structural damage had already been cleaned up, some minor tree and house roof damage was documented. Damage assessed as EF0 downburst, with an estimated max. wind speed of 125 km/h. Event time is radar estimated. Satellite imagery review did not reveal any visible damage.
Event Name: Carrot River, SK
Date: June 23, 2024
Time: 11:30 PM CST (0530 UTC)
Final Classification: Downburst
Final EF-Scale Rating: EF1
EF-Scale Damage Indicator / Degree of Damage: WHB/DOD-4
Location of worst damage: 53.2779N, 103.5979W
Description: Structural and tree damage was reported in Carrot River after a storm passed through the area. No injuries were reported. An NTP ground and drone survey was completed on June 26, 2024, documenting the reported damage and additional damage surrounding the community. Satellite imagery review revealed intermittent tree damage over a large area (damage swath ~30 km long and up to 14 km across) as well signs of structural damage in the area. Damage assessed as EF1 downburst, with an estimated max. wind speed of 140 km/h. Event time is radar estimated.

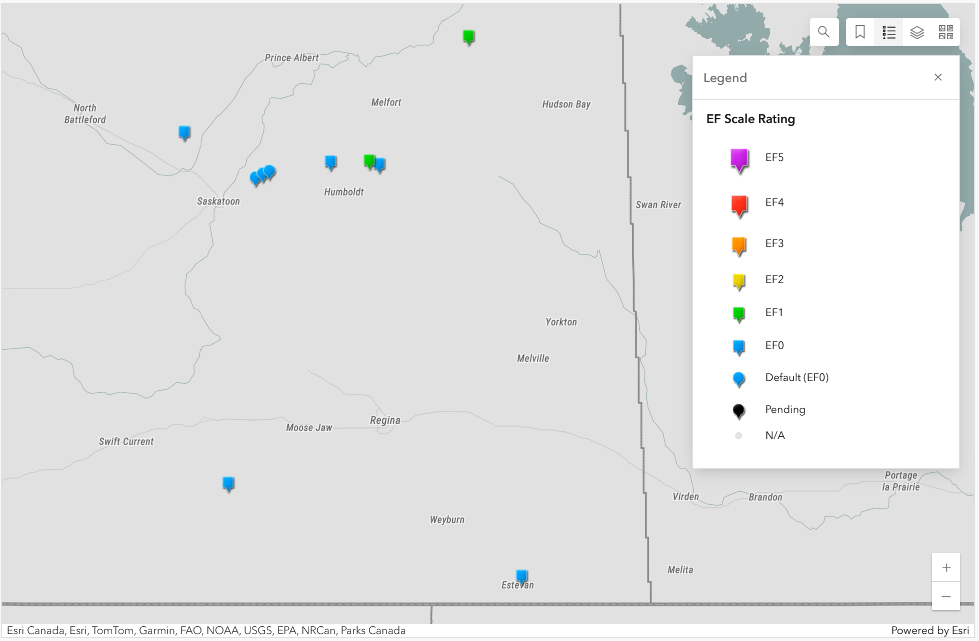

Regional map showing the 7 tornadoes and 3 downbursts recorded in southweastern Saskatchewan on June 30.

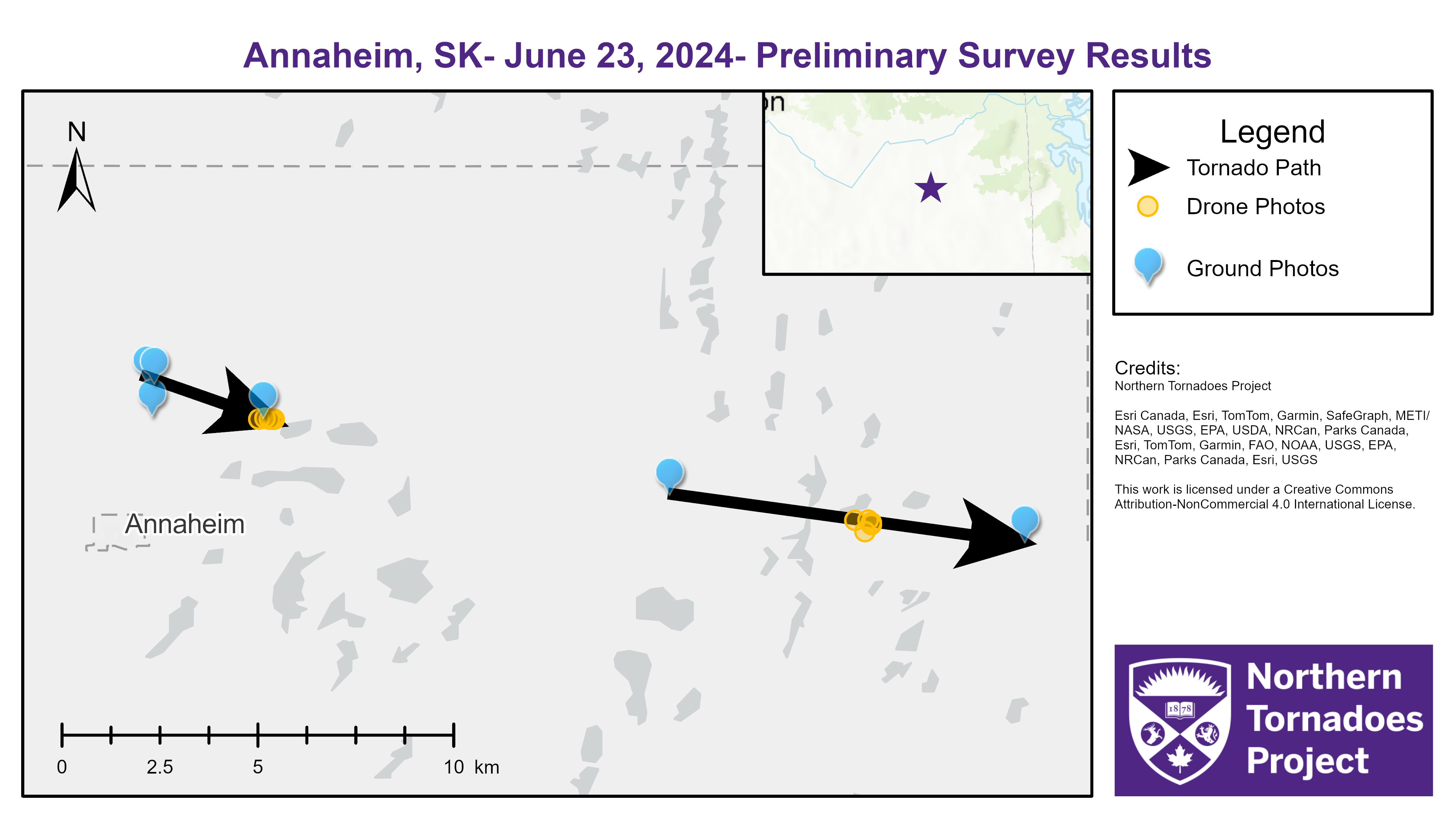

Survey map of the two tornaodoes at Annaheim, SK.

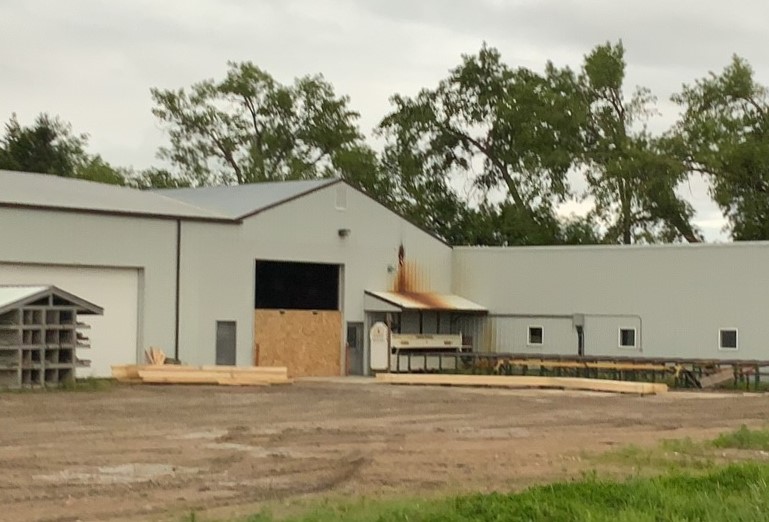

Damage to a large door at a warehouse in Annaheim, SK.

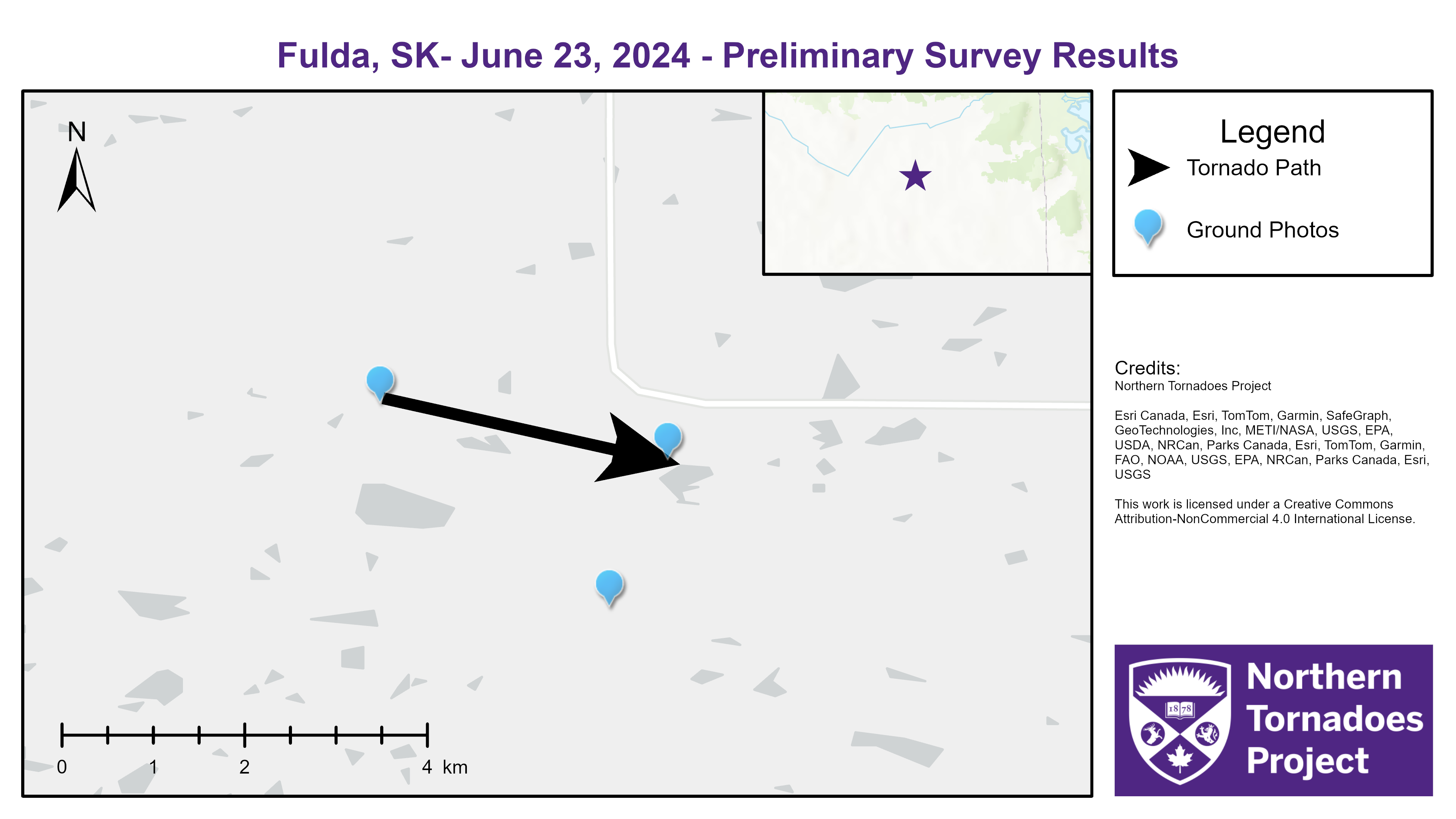

Survey map for the Fulda, SK tornado.

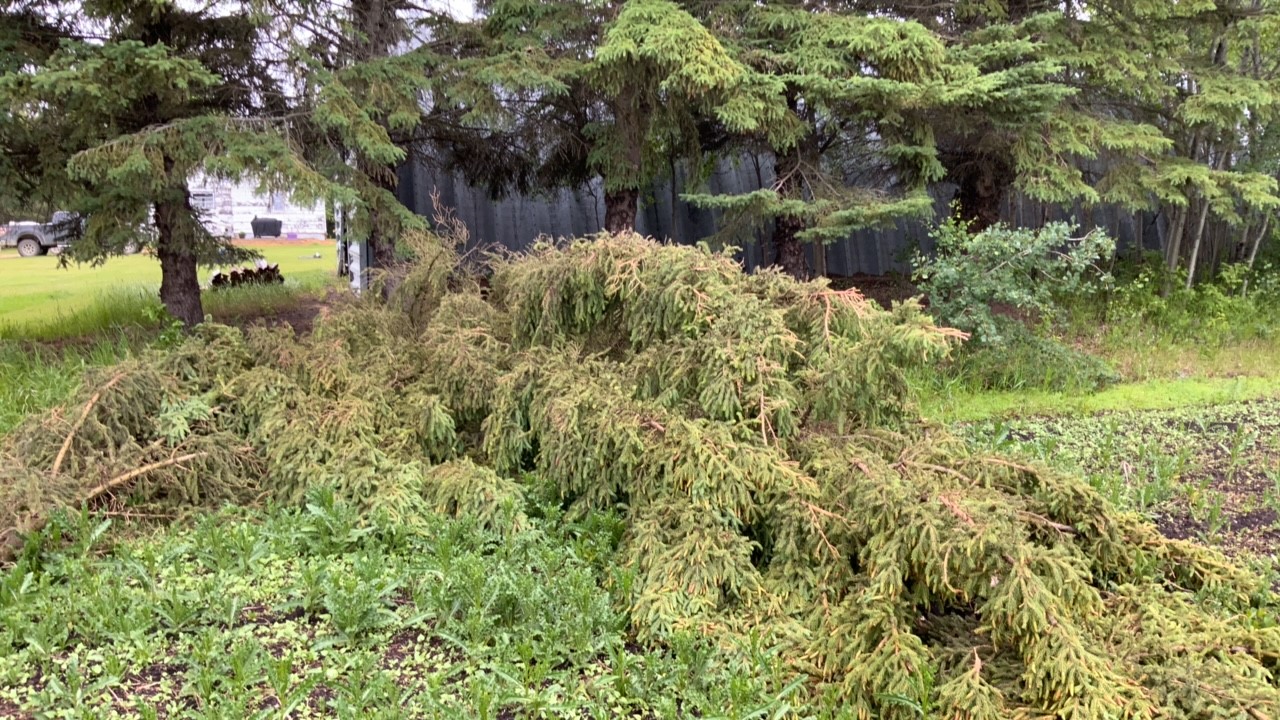

Example of tree damage found in Fulda, SK related to the tornado.

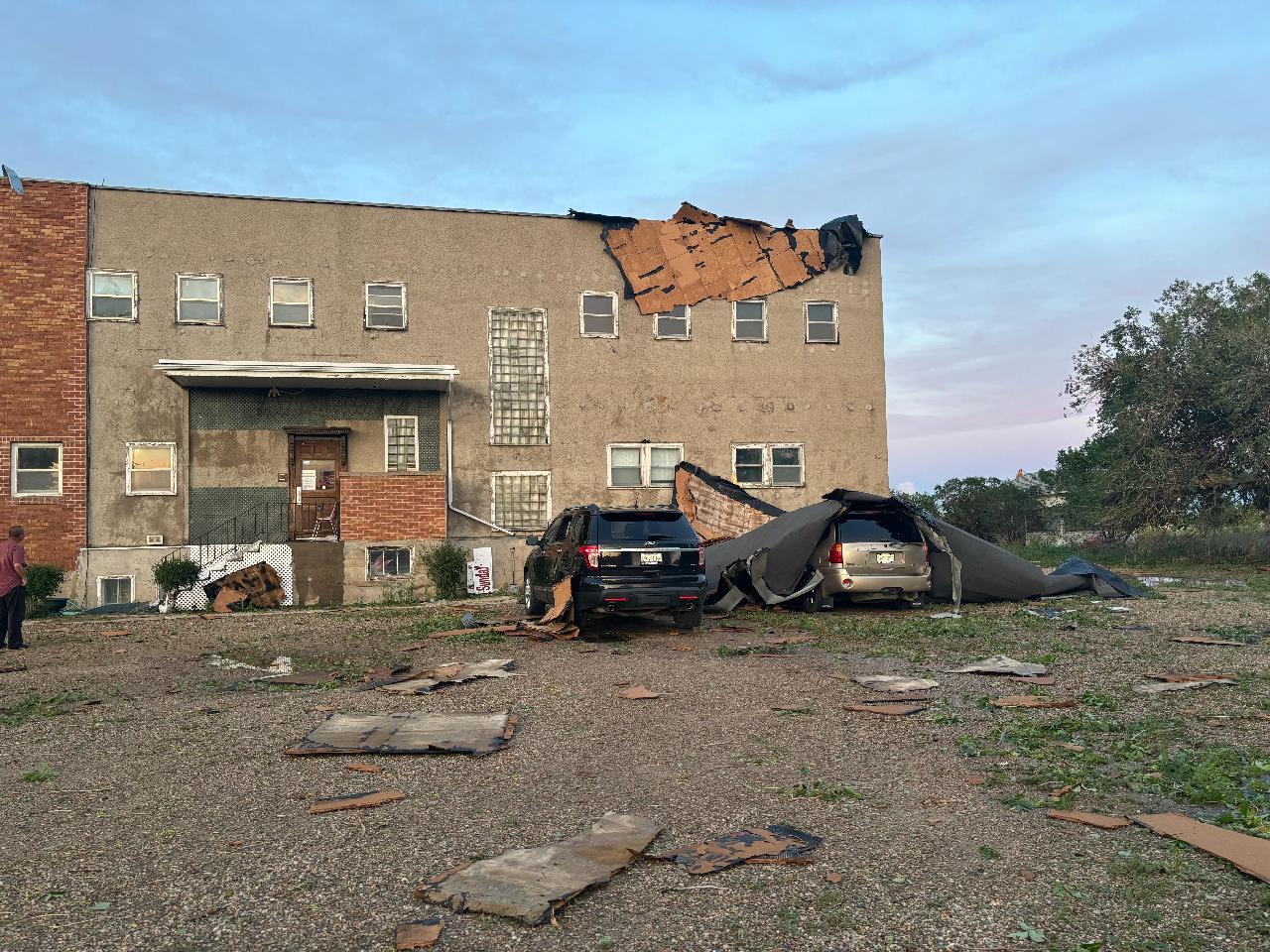

Damage to a roof with the EF0 downburst in Gravelbourg, SK.

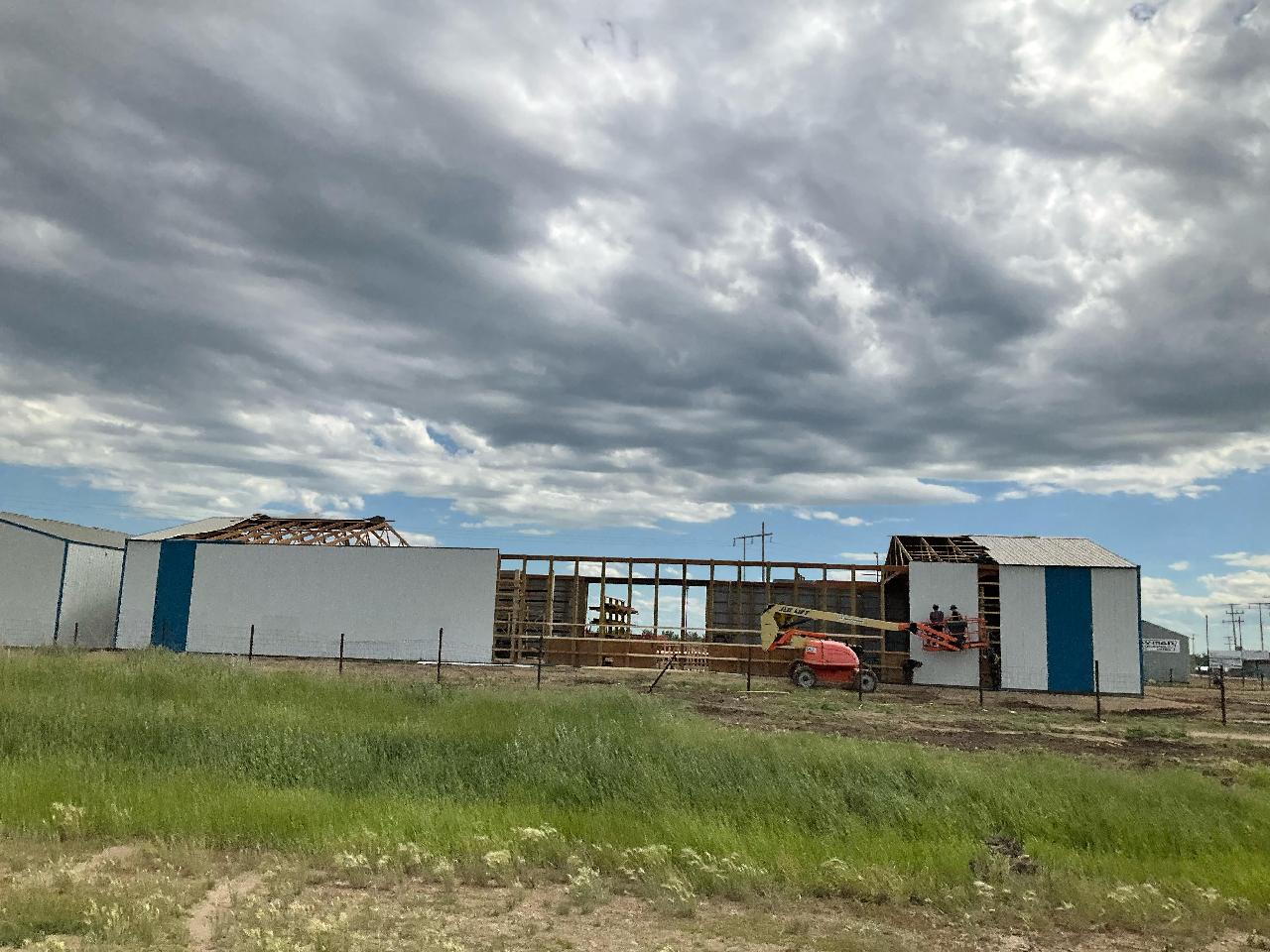

Significant roof damage with some wall damage with the downburst at Estevan, SK. It is likely that the large open door in the wall led to the pressurization of the structure and the loss of most of the roof, leading to an EF0 rating here.

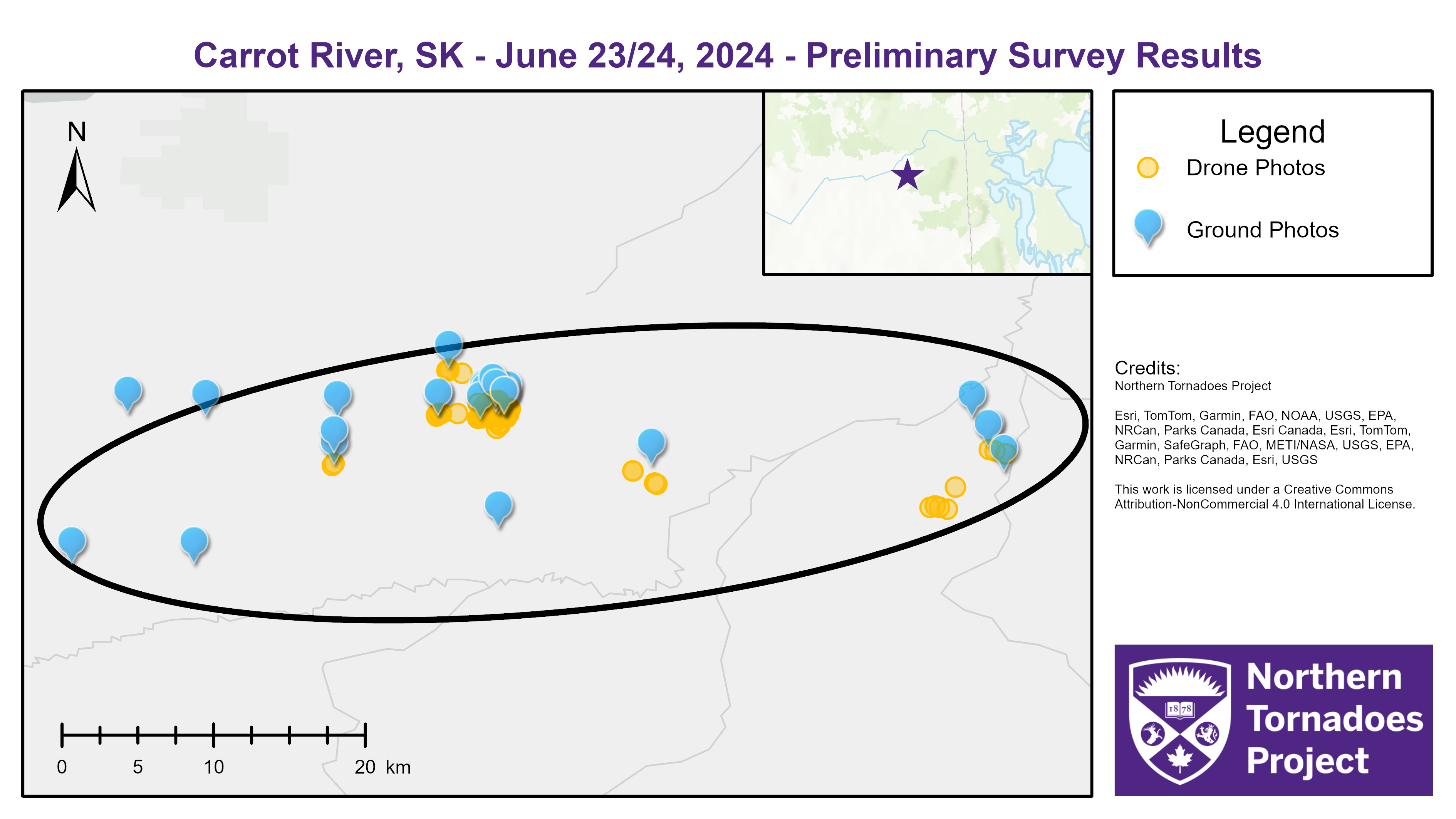

Survey map for the Carrot River, SK EF1 downburst.

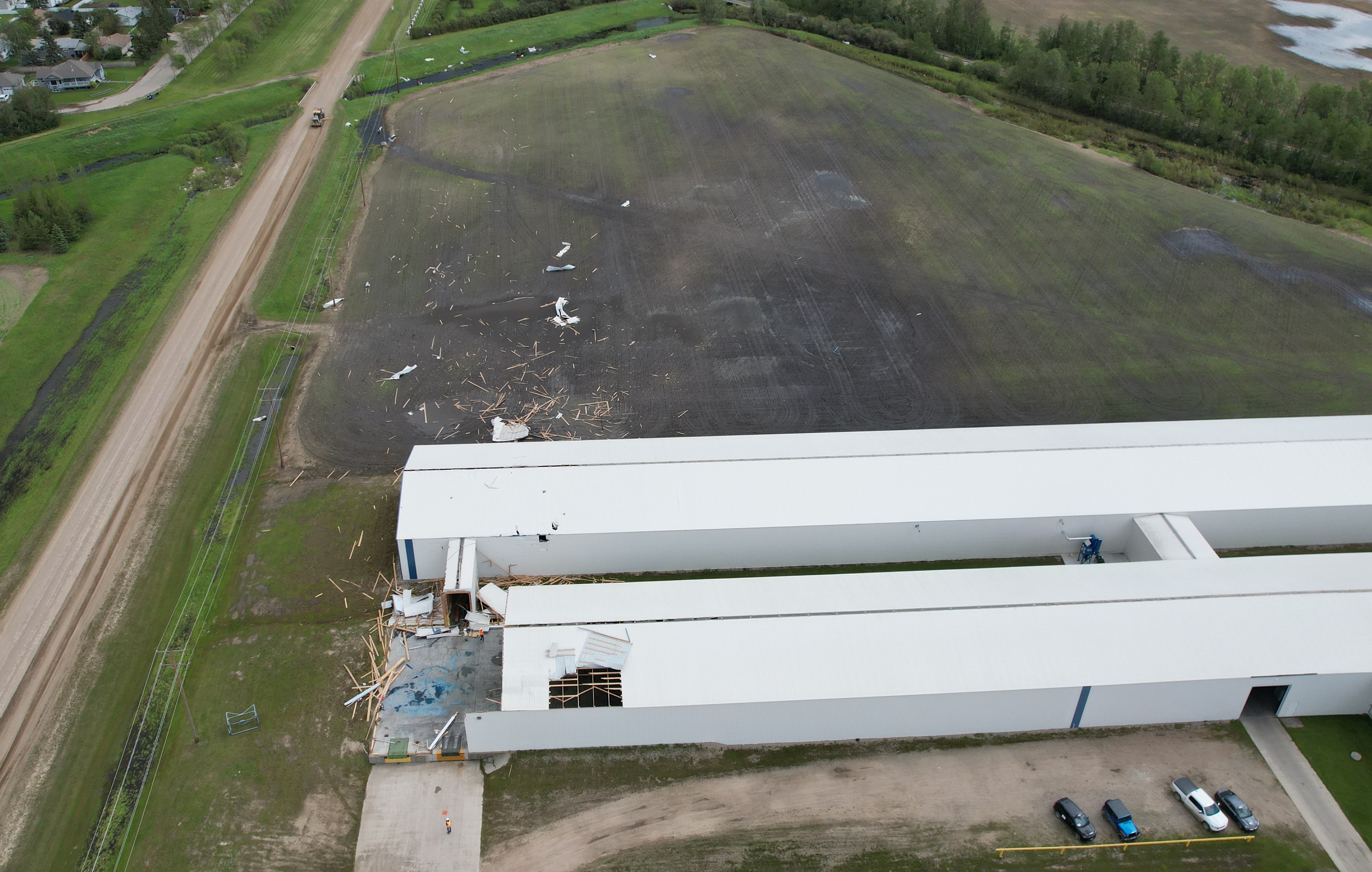

Section of warehouse roof and wall removed with downburst at Carrot River, SK. Again, it is assume that an bay door open to the wind (or early door failure) led to the damage here, but the damage here and in other locations was still enough to warrant an EF1 rating.

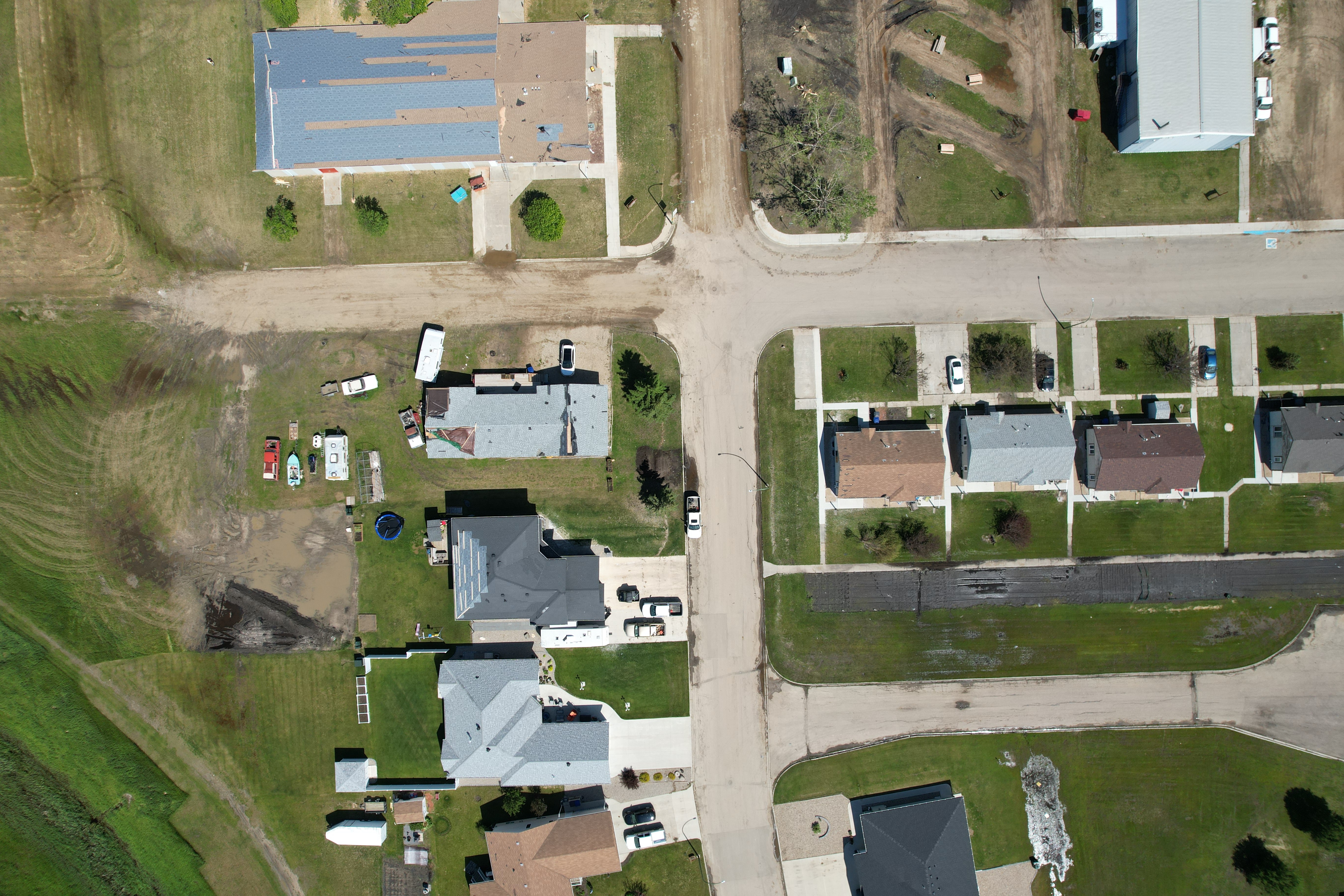

Drone image showing roof damage to houses and a community centre and tree damage in Carrot River, SK caused by the EF1 downburst.
