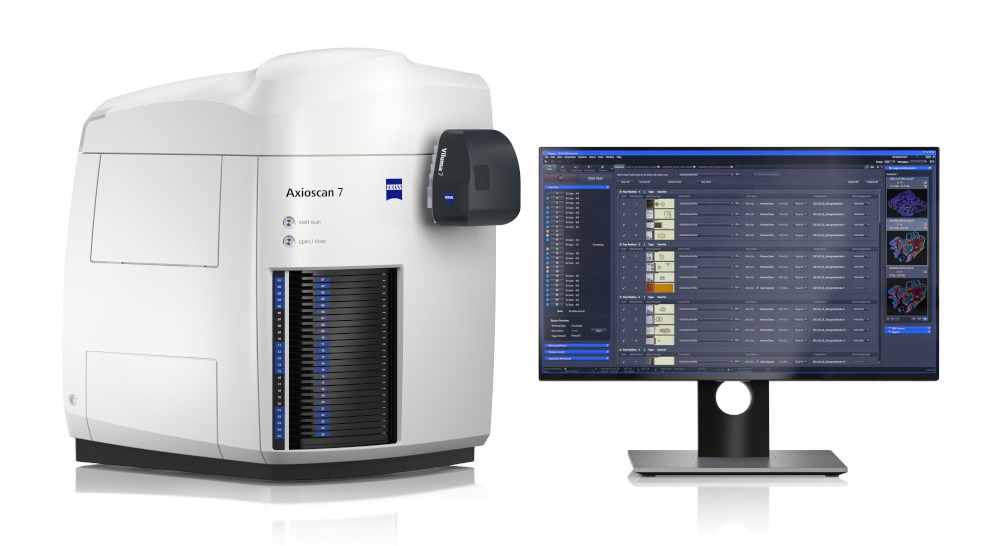

Zeiss Axioscan 7 Slide Scanning Service
Biotron is pleased to offer slide scanning services using the Zeiss AxioScan 7 automated slide scanner. The instrument runs up to 100 standard sized microscope slides in brightfield or multichannel fluorescence, featuring a stunning 7 fluorescent channels from DAPI to Cy5.
| Brightfield | (Transmitted White LED) |
| DAPI | (EX 375-395nm /EM 410-440nm) |
| CFP | (EX 406-440nm / EM 458-474nm) |
| GFP | (EX 455-483nm / EM 499-529nm) |
| YFP | (EX 494-528nm / EM 546-564nm) |
| Cy3 | (EX 545-565nm / EM 579-604nm) |
| mCherry | (EX 583-600nm/ EM 618-756nm) |
| Cy5 | (EX 620-643nm / EM 659-759nm) |
Lenses and Magnifications:
- 5x Fluar, 25 NA, WD 12.5mm, BF, DF, Pol
- 10x Plan-Apochromat, 0.45 NA, WD 2.1mm, BF, DF, Pol, DICII
- 20x Plan-Apochromat, 0.8 NA, WD 6.1mm, BF, DF, Pol, DICII
- 40x Korr Plan-Apochromat, 0.95 NA, WD 0.25mm, BF, DF, Pol, DICII
| 20X Brightfield | $5.00 |
| 40X Brightfield | $10.00 |
| 20X Fluorescent | $15.00 |
| 40X Fluorescent | By Quotation |
| Thick/Complex/Large Quantity of Slides | By Quotation |
| Whole Tissue Analysis* | By Quotation |
* Multiple preconfigured analysis pipelines are available for many common types of analysis.
Instructions for Submitting Slides:
Slides may be dropped off in the Biotron on the first floor in room 105. Please contact us at biotron_microscopy@uwo.ca before coming to ensure staff are available to meet with you and address any details about your project. The order form below must be completed in full with a signature before samples can be processed.
Slides should be spotlessly clean, dry, bubble free, and not have any overhang of coverslips or media off of the edges. For transparent/fluorescent tissues, please outline the desired tissue area using a fine sharpie on the back of the slide. Our staff would be happy to demonstrate this. Additional setup fees may apply if staff have to clean slides and/or delineate the tissue area.
To order slide scanning click here.
For our location, please click here. (Link to building location)
