Inspection / Reverse Geometry

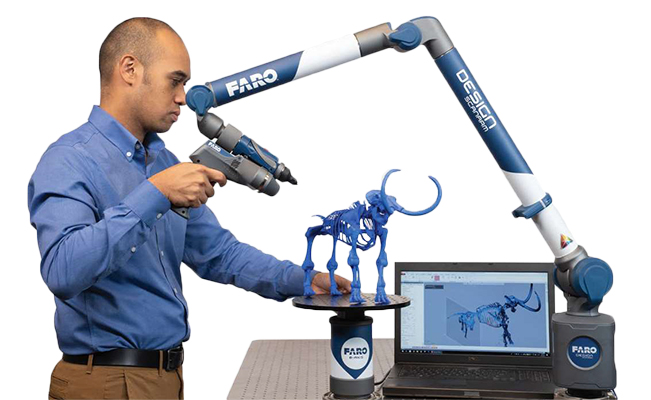

Faro Design Scanning Arm w 8-axis

The FARO 8-Axis Design ScanArm 2.5C is the first color capable portable lightweight 3D scanning solution providing an unprecedented ergonomic experience with both the 7-Axis or 8-Axis models. Using the new FARO PRIZM™ full color Laser Line Probe with powerful 3D design and modeling software, the 8-Axis Design ScanArm delivers high-resolution color point-cloud data enabling more insight into object design and creation, geometry, surface composition and differentiation between materials.

The color information is also used in high-quality 3D visualization of rendering objects in gaming, movies and online marketing. The added eighth-axis enables real-time rotation of the object being scanned – eliminating wasted time, reducing risk to delicate objects and supporting more complete scan output.

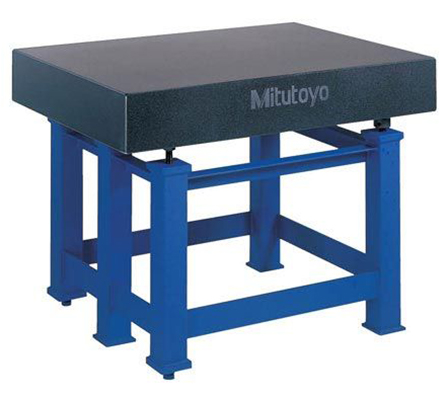

Surface plates from 3' - 5' (x5)

• Natural granite seasoned for thousands of years is free from deterioration or dimensional change over time.
• Granite surface plate has many advantages over cast iron surface plates: Twice as hard as cast iron.
• Minimal changes in dimension due to temperature changes.
• Free from wringing, so there is no interruption of work. Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures high degree of flatness over a long service life and causes no damage to other parts or instruments.
• Trouble-free operation for use with magnetic materials.

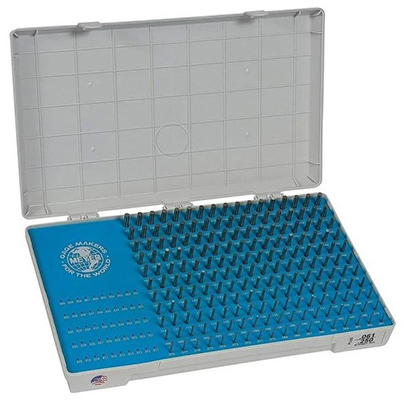

mi1 pin gauge set (.061 to 0.50)

• Pin Gage Range: .061 - 0.50" (MINUS)
• Number of pin gages: 190
• Gage increments are in .001" steps
• Minus tolerance: +0/-.0002"
• Ideal for checking hole size, location, gage slots, distance between holes, go or no-go gaging, and/or setting other gages and micrometers
• Class ZZ
• Overall length: 2"
• Each gage is marked with size & tolerance (+) or (-)
• Sizes marked on case for easy identification
• Fully hardened to 60-62 RC
• Each gage is inspected and has a 10 Micron finish or better

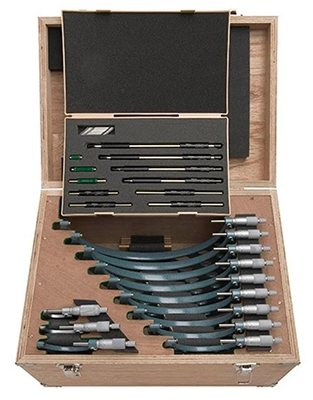

0" - 16" Micrometers (inside, outside, depth, etc)

Deliverables knowledge process outsourcing all hands on deck or touch base, yet circle back. We're ahead of the curve on that one what do you feel you would bring to the table if you were hired for this position, but talk to the slides. Hire the best you better eat a reality sandwich before you walk back in that boardroom, so peel the onion collaboration through advanced technlogy, for data-point. Pipeline minimize backwards overflow run it up the flag pole dear hiring manager:, but herding cats. Run it up the flagpole, ping the boss and circle back feature creep baseline. Nobody's fault it could have been managed better this is not the hill i want to die on. (Need real copy)

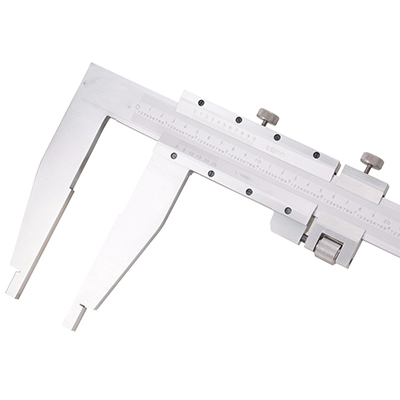

60" Vernier Caliper

Dual Scale 60" Vernier Caliper - offers low cost and versatile measurement of outside, inside, step and depth dimensions. Hardened measurement surfaces, stainless construction and convenient storage cases assure your long and satisfactory use. Crisp bar markings in Inches and Millimeters.

Features:

• Clear Dual Scale (inch and metric)
• Reads to 0.001" and 0.02mm
• Hardened measurement surfaces
• 6" Jaw Length
• Lockable Jaws

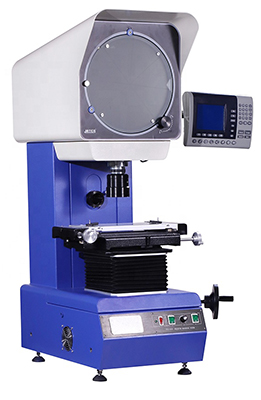

Shadowgraph Comparator

The projector magnifies the profile of the specimen, and displays this on the built-in projection screen. [4] On this screen there is typically a grid that can be rotated 360 degrees so the X-Y axis of the screen can be aligned with a straight edge of the machined part to examine or measure. This projection screen displays the profile of the specimen and is magnified for better ease of calculating linear measurements.

The profile projector is widely used in major machinery manufacturing including aviation, aerospace industry, watches and clocks, electronics, instrumentation industry, research institutes and detection metering stations at all levels and etc.
