Sheet Metal Equipment

Sampson Shear

Sampson hydraulic shears are well designed, economical, and made of high quality materials. This rugged machine will provide many years of reliable production.

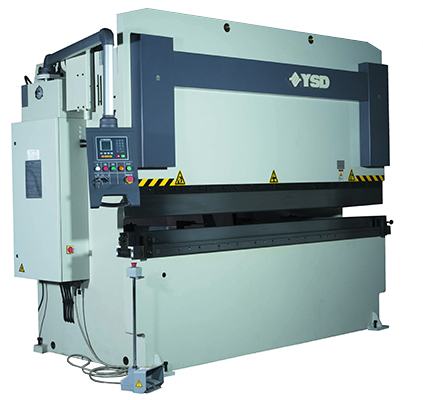

YSD Brake press

YSD - hydraulic | nc press brakes are equipped with torsion bar to ensure the parallelism & synchronism between the beams. Manually adjustable crowning on the table is an outstanding feature for all ppt/pptk series machines. The hydraulics and all the other main components are of renowned famous brands like rexroth / vickers / merkel etc. The machines are supplied with hardened ground punch & multi v die. Tooling can be supplied as per client's requirement as a optional.

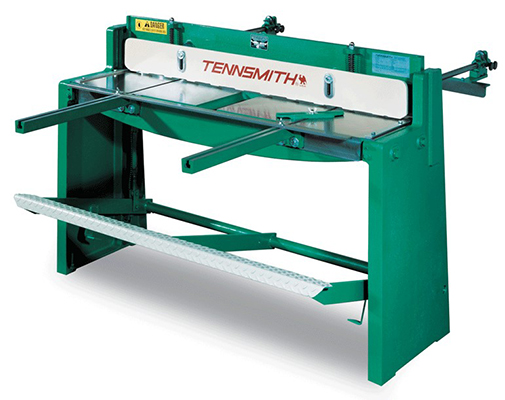

squaring shears (x3)

These shears feature triaction, high-carbon/highchromium (HCHC) steel blades. Both the upper and lower blades have a 2-degree edge relief and the lower blade has an additional 1-degree face relief for maximum material penetration with minimum effort. Triaction blades help prevent material movement while shearing, prolonging blade life.

TENNSMITH shears have the most complete adjustment features of any sheet metal shear on the market. The lower shear blade is bed adjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The spring-activated hold down feet clamp the workpiece securely in place and are easily adjustable to compensate holding pressure for light or heavy gauge material. There is ample clearance between the hold-down feet and shear blades to allow good operator vision for line-of-sight cutting. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives highly accurate readings.

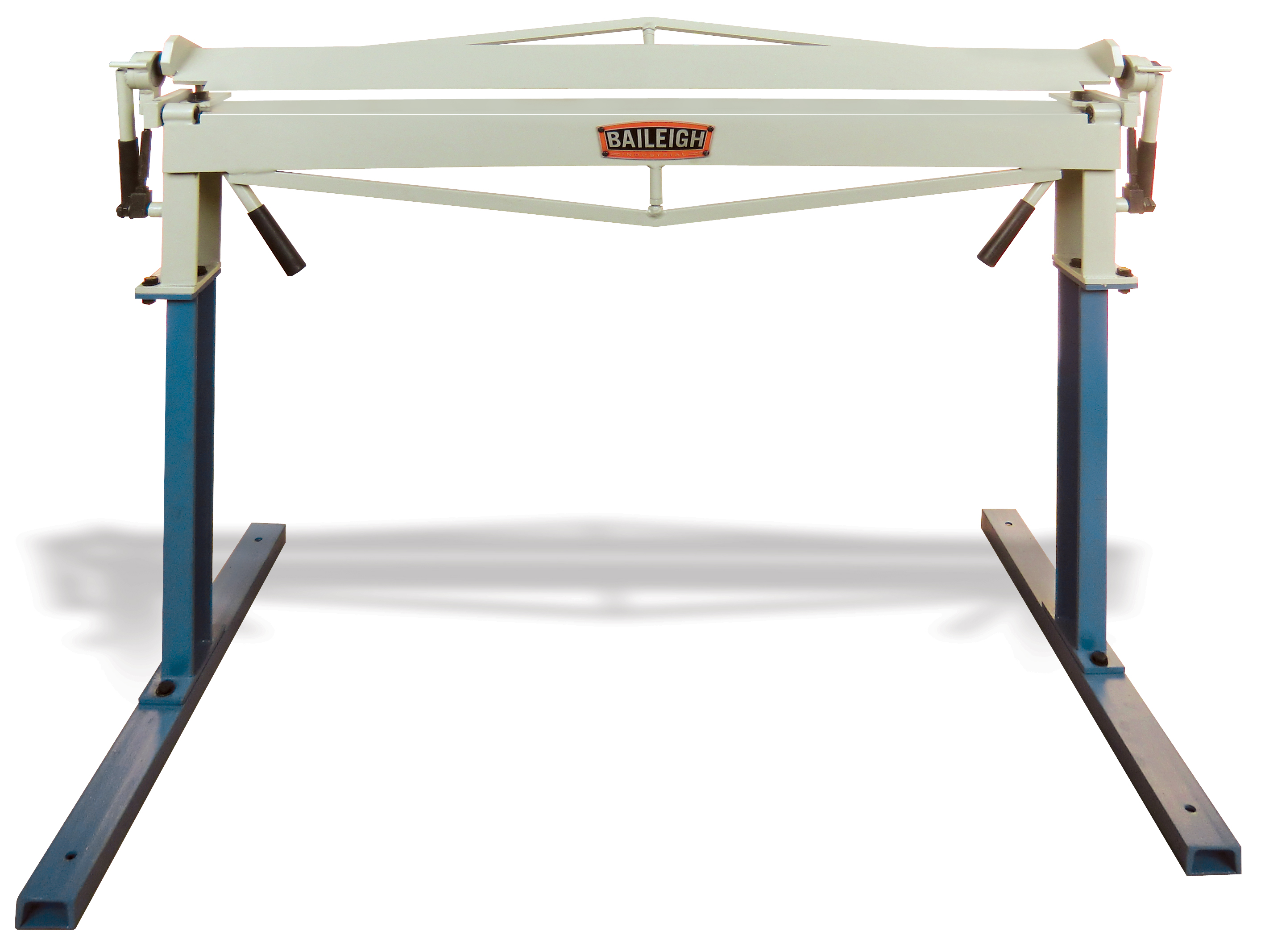

straight hand brake (x3)

• This industrial sheet metal bender can bend light-gauge materials without the awkward length of larger metal brakes
• This straight brake has a maximum capacity of 20 gauge mild steel and 18 gauge aluminum
• 48” (4 feet) long and can bend at full capacity all the way across
• Bend angle of up to 120°
• Right and left cam lever arm precisely clamps the material
• You can adjust the clamping pressure for more delicate work
• Fully-welded steel plate construction, with support trusses on the top and bottom, maintains rigidity to deliver accurate results for years
• Baileigh backs this metal brake with a 1-year parts warranty and lifetime technical support by phone

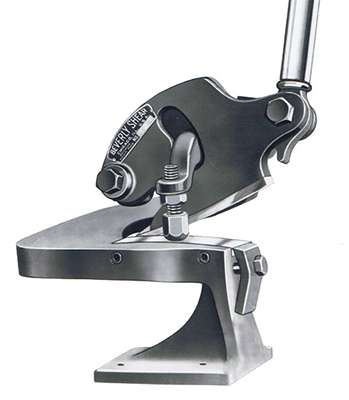

beverly shear

Beverly Throatless Shears are ideal all-purpose metal cutting tools because they permit any desired cut in heavy gauges, yet handle lighter metals without distortion. Unique shoulder design allows work to be turned in any position during the cut.

Geared rack and pinion makes heavy metal cutting easy. Upper and lower blades are positioned to provide a clean, knurl-free cut, regardless of material.

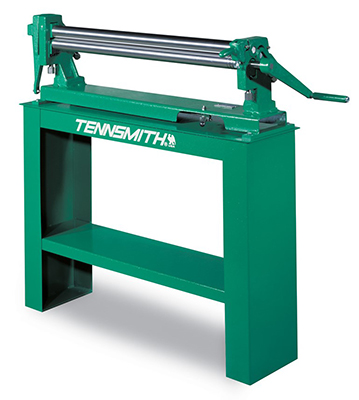

36" manual roll form

TENNSMITH’s slip rolls combine precision-turned, ground and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool.

Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front-mounted handle to lift the upper roll for material removal. Wire grooves are standard.

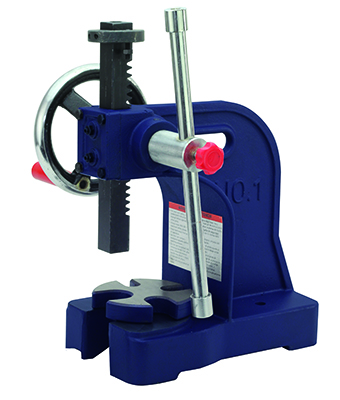

arbor press

Delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications. Removable machined steel anvil provides accurate work support in four slot positions. Depth stop securely clamps to the ram and withstands full pressure. A lockable fine adjustment adjusting screw accurately limits the depth of the ram stroke.

Punches or tools may be added to the end of the ram with the aid of a magnetic insert. The ram is reversible with one end solid and the other end with a hole and magnet to hold bits and tools.

• Sturdy, cast-iron construction
• Rugged steel ram is driven by a machined pinion
• Base drilled for mounting on a bench or pedestal
• Includes three piece bit set - 1 pointed, 1 round and 1 square end bit, and a removable steel anvil
• The base is machine to hold the three bit set

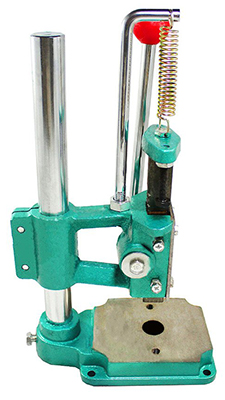

puch press
